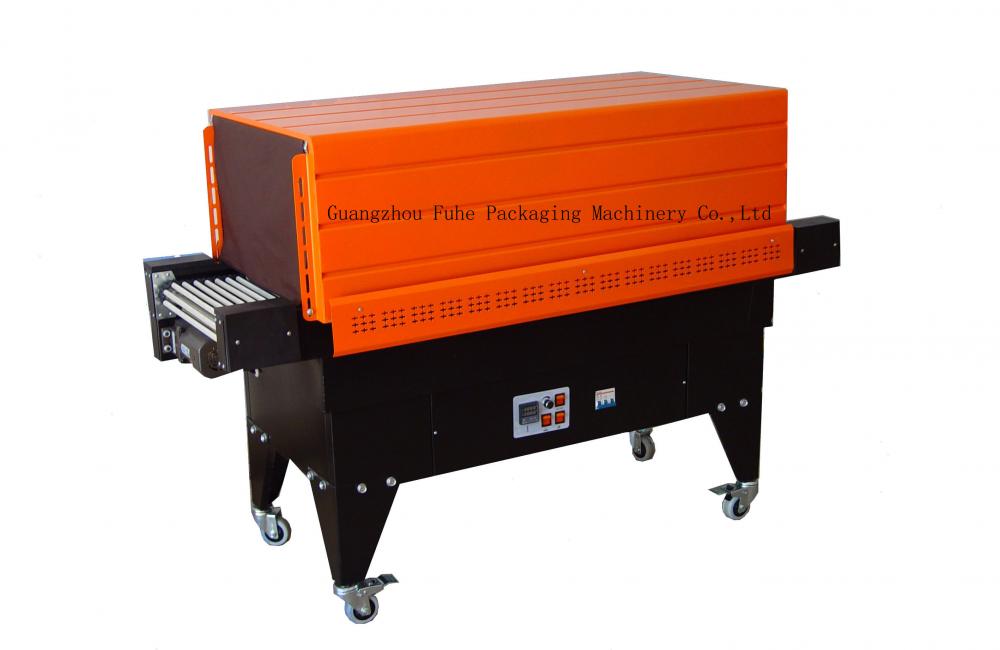

BS 4525 Series Heat Shrink Packing Machine
PRODUCT DETAILS
The machine adopts jet-propelled structure. It is applied to a large scale shrink package of software. biscuit. printing. pharmacy and floor，in ceramics, Drinking, beer etc industry. Temperature is controlled by capacity and strong power turbine heat-seal electrical machine. Delivery way is XR-SL or drum-type. It is applied to PVC.POF.PP. etc heat shrink film.
Description
TECHNICAL PARAMETER
| Model | BS4515 | BS4525 | BS4515L | BS4525L | BS4535L | BS6525L |
| Voltage | 220V/50HZ 380V/50HZ(3HP) | 380V/50HZ(3HP) 220V/60HZ(3HP) | ||||
| Power | 8Kw | 11Kw | ||||
| Conveyor Loading | 10kg | 30kg | ||||
| Conveying Speed | 0~10m/min | |||||
| Tunnel Size | 900×450 | 900××450 | 1200×450 | 1200×450 | 1200×450 | 1200×650 |
| ×150mm | ×250mm | ×150mm | ×250mm | ×350mm | ×250mm | |
| Overall Dimension | 1200×610 | 1200×610 | 1600×610 | 1600×610 | 1600×610 | 1600×810 |
| ×1140mm | ×1240mm | ×1140mm | ×1240mm | ×1340mm | ×1240mm | |
| Net weight | 80kg | 90kg | 125kg | 135kg | 145kg | 160kg |
