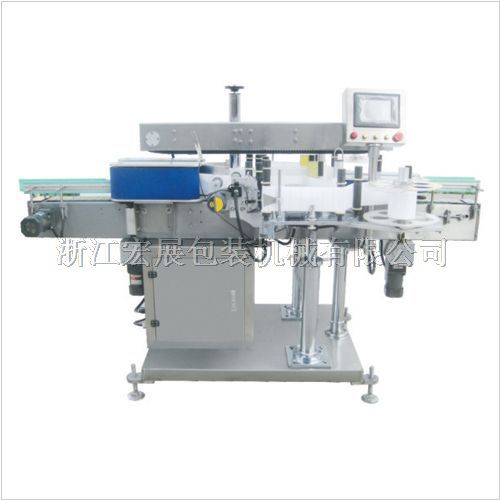

HTB-200A DOUBLE-SIDE LABELING MACHINE

PRODUCT DETAILS

HTP series labeling machine is suitable for cylindrical or flat grass bottle and plastic bottle,stick lable on bottle circle,semi-circle as required position Two conveyor type:horizontal and vertical.Flat bottle can single side label or double side label.

Description

TECHNICAL PARAMETER

Model	HTB-200A
Speed	150bottles/min
it is related to product material and label size
Square(Flat)bottle specification	Thickness 30-100mm Height ≤300mm
Label width	16-160mm
Label length	15-200mm
Outside diameter for label roller	350mm
Inner diameter for label roller	76mm
Power	2.20kw
Weight	400kg
Dimension	2500×1850×1450mm
Rated exhaust pressure	≥0.5Mpa
