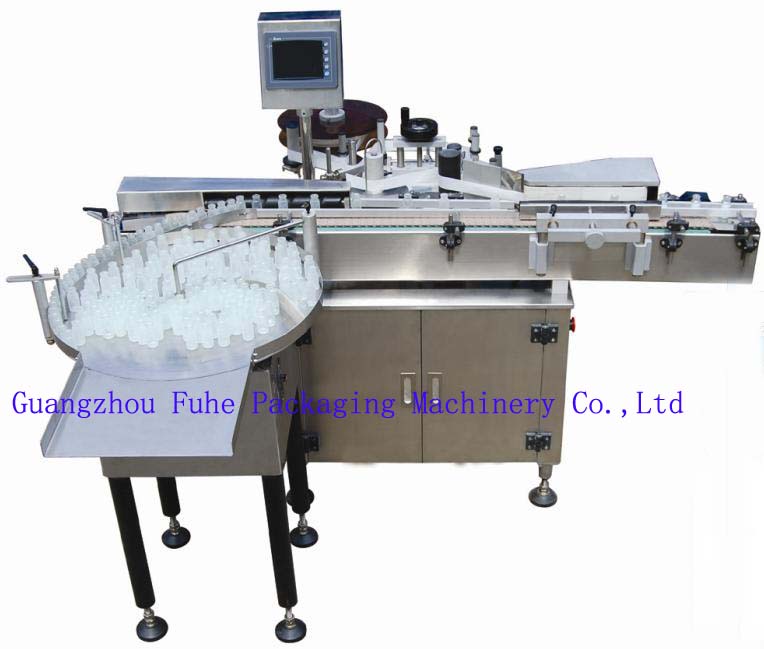

KLTB-S Vertical Round Bottle Labeling Machine
KLTB-S Vertical Round Bottle Labeling Machine

KLTB-S Vertical Round Bottle Labeling Machine

PRODUCT DETAILS

This equipment use PLC micro-computer software control system, which has powerful memory function, and able to pre-setting 50 group of labeling parameters. It is simple and quick operation. The label controlled by mutual inductance stepper motor. It ensures that the speed of sending label is same as the imported inverter, to ensure that the machine's stability and reliability.

Description

TECHNICAL PARAMETER

Speed 80~200bottle/min
Bottle dimension φ10~60 mm
Height 10~40 mm
Length 0~160 mm
Label Outside Dimension φ300 mm
Label Inside Dimension φ76 mm
Precision ±1.0 mm
Convey Direction light→right  OR right→light
Conveyer Width 85
Overall Dimension 1600×1100×1300 mm
Weight 180 Kg
